Mastering Swiss Machining for Precision Manufacturing

How did a process once used for watchmaking become key to modern manufacturing? Swiss machining, known for its high precision, is now widely used for making small and complex parts. This essay explores its basics, how it operates, and its benefits.

Introduction: What Is Swiss Machining?

• Medical Devices: Production of implants, surgical instruments, and other precision components.
• Aerospace: Manufacturing of fasteners, turbine blades, and other critical components.
• Automotive: Fabrication of fuel injectors, transmission parts, and sensors.
• Electronics: Creation of connectors, switches, and other miniature components.

How Swiss Machining Works

Swiss machining uses a special setup to make precise parts. The workpiece is pushed through a guide bushing, which keeps it close to the tool. This setup limits movement and helps maintain accuracy.

• Guide Bushing: Supports the workpiece, minimizing deflection and enhancing precision.
• Sliding Headstock: Moves the workpiece along its axis, facilitating the machining of longer parts.
• CNC Control System: Provides precise control over the machining process, enabling complex operations.

Unlike standard CNC machining, Swiss machining keeps the material closer to the tool and handles several steps without changing setups. This means better accuracy and more efficiency. It also cuts down on scrap, which is a big plus when working with high-cost metals.



Advantages of Swiss Machining

Swiss machining offers several benefits that make it a preferred choice for precision manufacturing:

• Precision & Accuracy: Swiss machines can achieve tolerances as tight as ±0.0005 inches, making them ideal for applications requiring high precision.
• High Efficiency: The ability to perform multiple operations in a single setup reduces cycle times and increases productivity.
• Material Versatility: Swiss machines can handle a variety of materials, including metals like stainless steel, titanium, and aluminum, as well as plastics.
• Automation-Friendly: Swiss machines are compatible with automation systems, allowing for lights-out manufacturing and reduced labor costs.
• Reduced Secondary Operations: The integration of various machining operations in a single setup minimizes the need for secondary operations, reducing lead times and costs.

These advantages make Swiss machining particularly suitable for industries requiring high-precision components, such as medical devices, aerospace, automotive, and electronics.

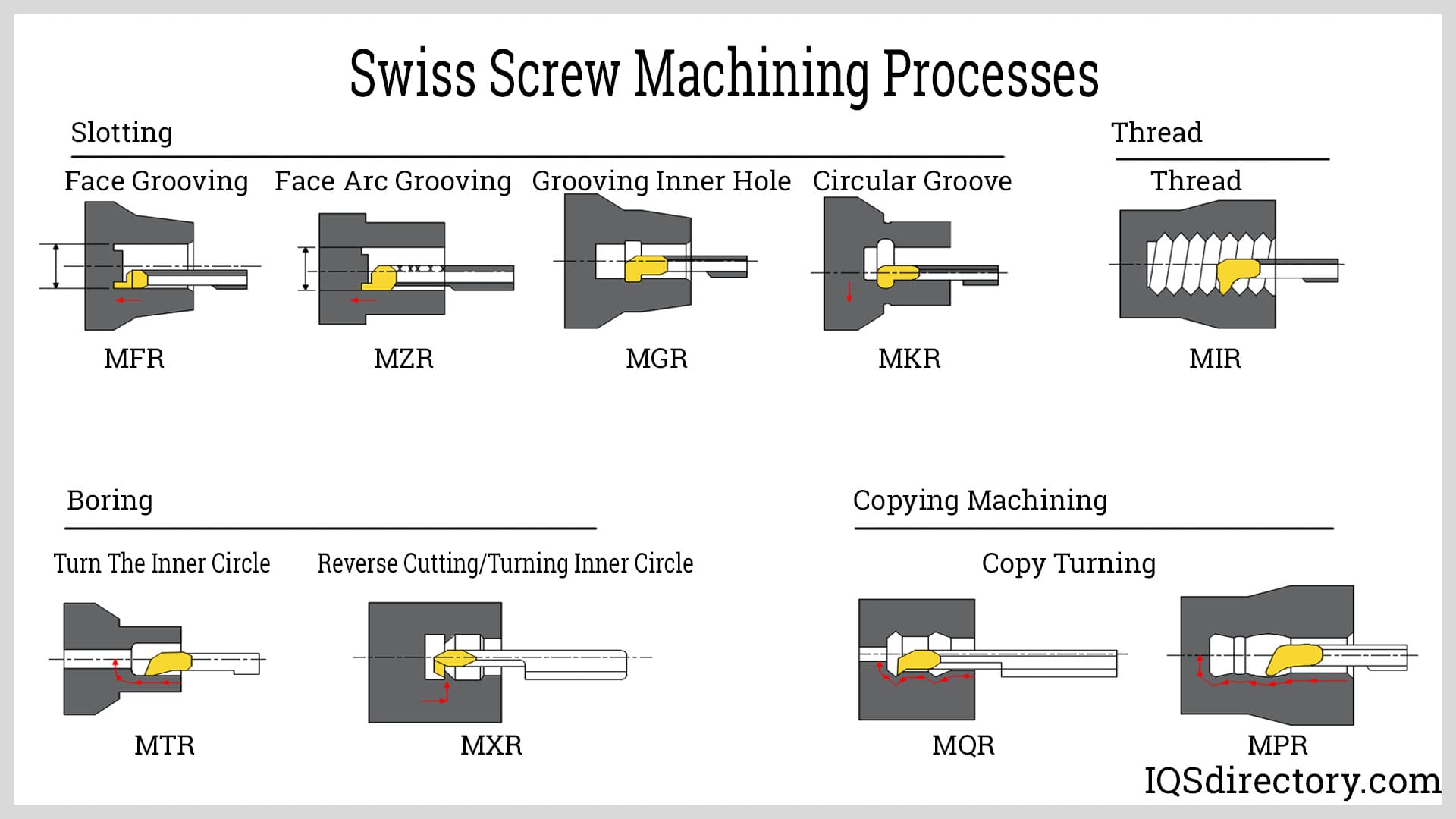

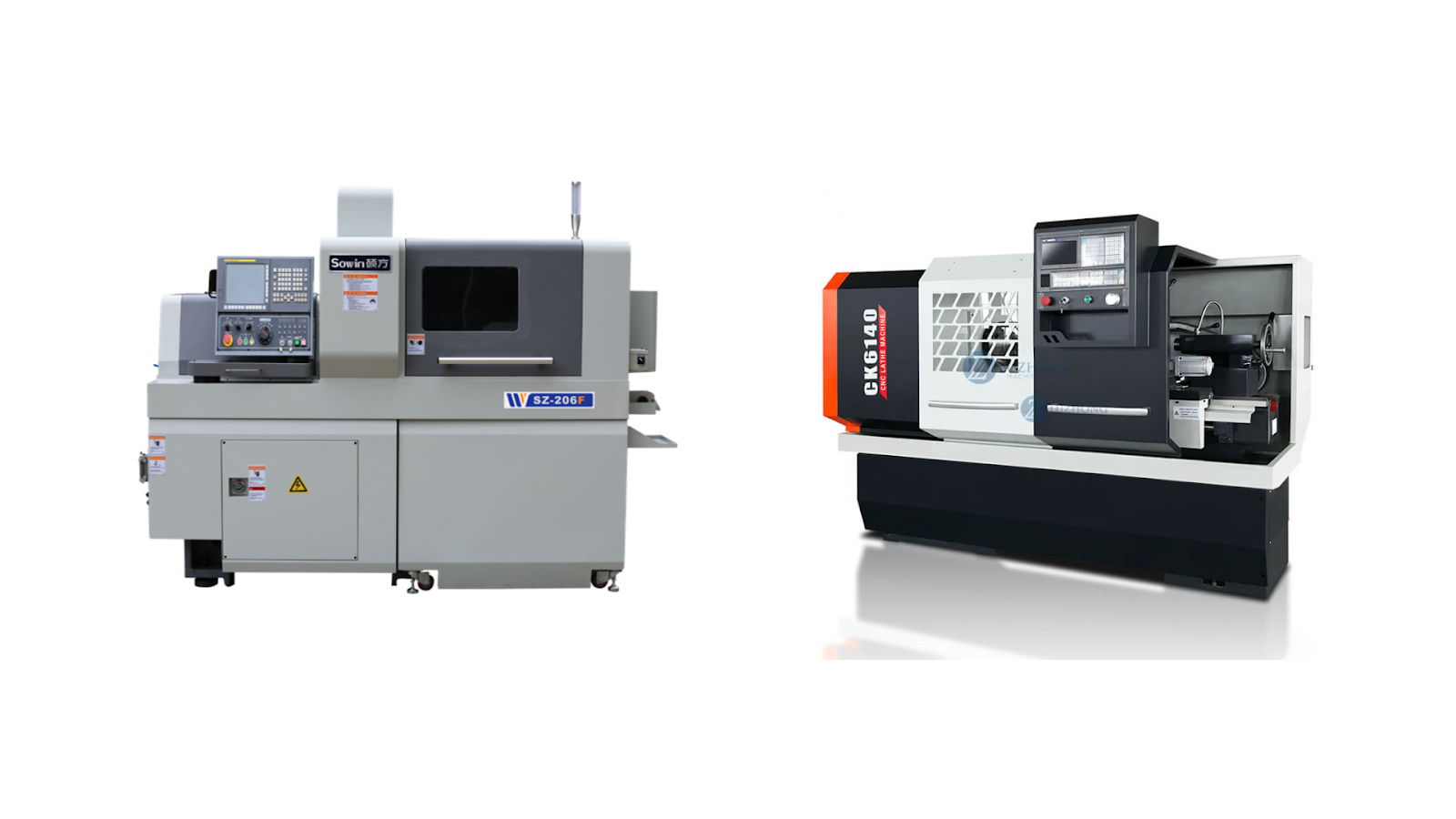

Traditional CNC Machining Compared to CNC Swiss Machining

While both traditional CNC machining and CNC Swiss machining are pivotal in modern manufacturing, they cater to different production needs based on part complexity, size, and precision requirements.



Structural Design and Operational Mechanics

Traditional CNC lathes typically feature a fixed headstock that clamps the workpiece at one or both ends. The cutting tool then moves along the X, Y, and Z axes to remove material. This setup is well-suited for machining larger, more robust parts but may struggle with maintaining precision in long, slender components due to potential deflection and vibration.

In contrast, CNC Swiss machines employ a sliding headstock that feeds the workpiece through a guide bushing, ensuring that the material is supported close to the cutting tool. This design minimizes deflection and vibration, allowing for the machining of long, thin parts with high precision. The guide bushing provides additional support, enhancing stability and enabling the production of parts with tight tolerances.



Machining Capabilities and Efficiency

Traditional CNC lathes typically operate with 3 to 4 axes, performing one operation at a time. While versatile, this can lead to longer cycle times, especially when machining complex geometries or requiring multiple setups. Some mildly complex parts may even require machining on multiple machines, drastically increasing cycle time.

On the other hand, CNC Swiss machines often feature 7 to 13 axes and can perform multiple operations simultaneously, such as turning, drilling, milling, and threading, all within a single setup. This multi-axis capability significantly reduces cycle times and increases throughput, making it ideal for high-volume production of intricate parts.

Precision and Tolerance

Precision is a critical factor in many manufacturing applications. Traditional CNC lathes can achieve tight tolerances but may face challenges when machining long, thin parts due to potential deflection and vibration. These factors can lead to deviations from desired specifications, especially in complex geometries.

CNC Swiss machines excel in maintaining tight tolerances, often within ±0.0001 inches, due to their design and operational mechanics. The combination of a sliding headstock and guide bushing provides superior stability, enabling the production of parts with exceptional precision and surface finishes.

Cost Considerations

The initial investment for CNC Swiss machines is generally higher than that for traditional CNC lathes, owing to their advanced design and multi-axis capabilities. However, the increased efficiency, reduced cycle times, and minimized need for secondary operations can offset the higher upfront costs, particularly in high-volume production scenarios.

Factors Influencing Swiss Machining Operations



1. Material Properties

The inherent characteristics of the material being machined play a pivotal role in the Swiss machining process. Materials such as metals, plastics, and composites exhibit varying properties like hardness, ductility, and thermal expansion. These variations can affect tool wear, chip formation, and surface finish. Advanced Swiss turning machines utilize adaptive control systems and specialized tooling to adjust cutting parameters in real time, ensuring consistent results across different materials.

2. Coolant Management

Effective coolant management is essential in Swiss CNC machining to maintain tool life, prevent overheating, and ensure a high-quality surface finish. The design of coolant systems must accommodate high-pressure delivery to clear chips and cool the cutting area efficiently. Proper coolant flow and filtration systems are crucial for achieving optimal machining performance and reducing downtime. The choice of coolant fluid can significantly affect the machining process, especially in terms of lubrication, cooling efficiency, and compatibility with different materials. Swiss CNC machines often use synthetic or semi-synthetic coolants that provide excellent lubrication and thermal stability, enhancing the precision and speed of the machining operations.



3. Machine Calibration and Maintenance

Regular calibration and maintenance of Swiss CNC machines are vital for maintaining accuracy and consistency. Minor deviations in machine alignment or tool positioning can lead to significant variations in part dimensions. Frequent inspections of components such as guideways, headstocks, collets, and spindles ensure accuracy and prevent unexpected breakdowns. Proper lubrication is essential to avoid wear and maintain performance. Keeping the machine and its components clean prevents contamination, which can affect both part quality and machine performance.



4. Workforce Expertise

The skill level and experience of the workforce significantly influence the efficiency and quality of Swiss machining operations. Investing in training and development for operators and technicians is essential for optimizing operations. Providing comprehensive training programs and hands-on workshops can empower personnel to operate machines more effectively, troubleshoot issues efficiently, and implement best practices to enhance performance. Encouraging ongoing skill development fosters a culture of excellence and innovation within the organization.



Innovations in Swiss Machining

Swiss machining, renowned for its precision and efficiency, has seen significant advancements in recent years. These innovations have expanded its applications across various industries, enhancing capabilities and meeting the evolving demands of modern manufacturing.

Y-Axis Tooling: Enhanced Chip Control

Traditional Swiss machining often faced challenges with chip management, particularly in small-part production. The introduction of Y-axis tooling, such as Tungaloy’s ModuMini-Turn cutting heads, has addressed this issue. By utilizing the Y-axis feed, these tools direct chips downward and away from the cutting area, effectively preventing bird-nesting and ensuring high-quality surface finishes. This advancement allows for higher feed rates and improved part quality, especially in compact setups where space is limited.

Hybrid Additive Manufacturing: Integrating 3D Printing

The convergence of Swiss turning and additive manufacturing has led to the creation of complex, near-net-shape parts. This hybrid approach combines the precision of Swiss machining with the design flexibility of 3D printing, enabling the production of intricate geometries that were previously challenging to achieve. Industries such as aerospace and medical device manufacturing benefit from this integration, as it allows for the creation of lightweight structures and customized components that meet stringent specifications.

Smart Manufacturing: IoT-Enabled Swiss Machines

The advent of Industry 4.0 has brought about the integration of Internet of Things (IoT) technologies into Swiss machining. Modern Swiss machines equipped with real-time monitoring capabilities provide valuable insights into machine performance, tool wear, and process efficiency. Predictive maintenance, powered by AI algorithms, allows manufacturers to anticipate potential issues before they lead to downtime, thereby enhancing productivity and reducing operational costs.



Applications of Swiss Machining

Swiss machining’s versatility has made it indispensable across various sectors:

• Medical Device Manufacturing: The precision of Swiss machining is crucial in producing components such as surgical instruments, implants, and diagnostic devices. The ability to achieve tight tolerances ensures the functionality and safety of medical devices.

• Aerospace Components: Swiss machining is employed to manufacture critical parts like turbine blades, fasteners, and structural components. The process’s accuracy and reliability are essential in meeting the stringent requirements of the aerospace industry.
• Automotive Parts: Components such as fuel injectors, transmission parts, and sensors are produced using Swiss machining. The process’s efficiency and precision contribute to the performance and safety of automotive vehicles.
• Electronics: Swiss machining is utilized to create miniature components like connectors, switches, and housings. The ability to produce small, intricate parts is vital in the electronics industry, where space constraints and performance standards are paramount.

Future Trends in Swiss Machining

The landscape of Swiss machining is evolving with several key trends:

Technological Advancements

• AI and IoT Integration: The incorporation of artificial intelligence and Internet of Things technologies is enhancing the capabilities of Swiss machines. Predictive maintenance and real-time monitoring are improving operational efficiency and reducing downtime.
• Multi-Axis Machining: The development of multi-axis Swiss machines allows for the production of complex geometries in a single setup, reducing cycle times and improving part accuracy.

Market Trends

• Miniaturization: The demand for smaller, more intricate components is driving advancements in Swiss machining. The ability to produce high-precision miniature parts is becoming increasingly important in industries such as electronics and medical devices.
• Emerging Industries: Sectors like robotics and renewable energy are expanding, creating new opportunities for Swiss machining. The need for precise components in these industries is contributing to the growth of Swiss machining applications.

Conclusion

Swiss machining offers unparalleled precision and efficiency, making it a preferred choice for high-precision manufacturing needs. Its unique design and capabilities enable the production of complex, small parts with tight tolerances. As industries continue to demand higher precision and innovation, Swiss machining is poised to meet these challenges.

For those seeking to leverage the benefits of Swiss machining, exploring services that specialize in this area can provide valuable insights and solutions tailored to specific manufacturing requirements.
